Dualscan™DIAMOND PLAYER Dualscan OS

DIAMOND PLAYER 1.4.0

Diamond™ Player
Pro Audio.

For the AES.org & Digital Arts Pro & Education Community

Your input. Held to the Diamond™ delivery standard.

Connect a USB-C ADC, monitor every detail, and record directly into encrypted .diamond media. A continuous recording listener keeps the take within the Diamond acceptance limits.

Explore Pro Audio Get the community image

THE BIG PICTURE / 01

Every detail.
In full view.

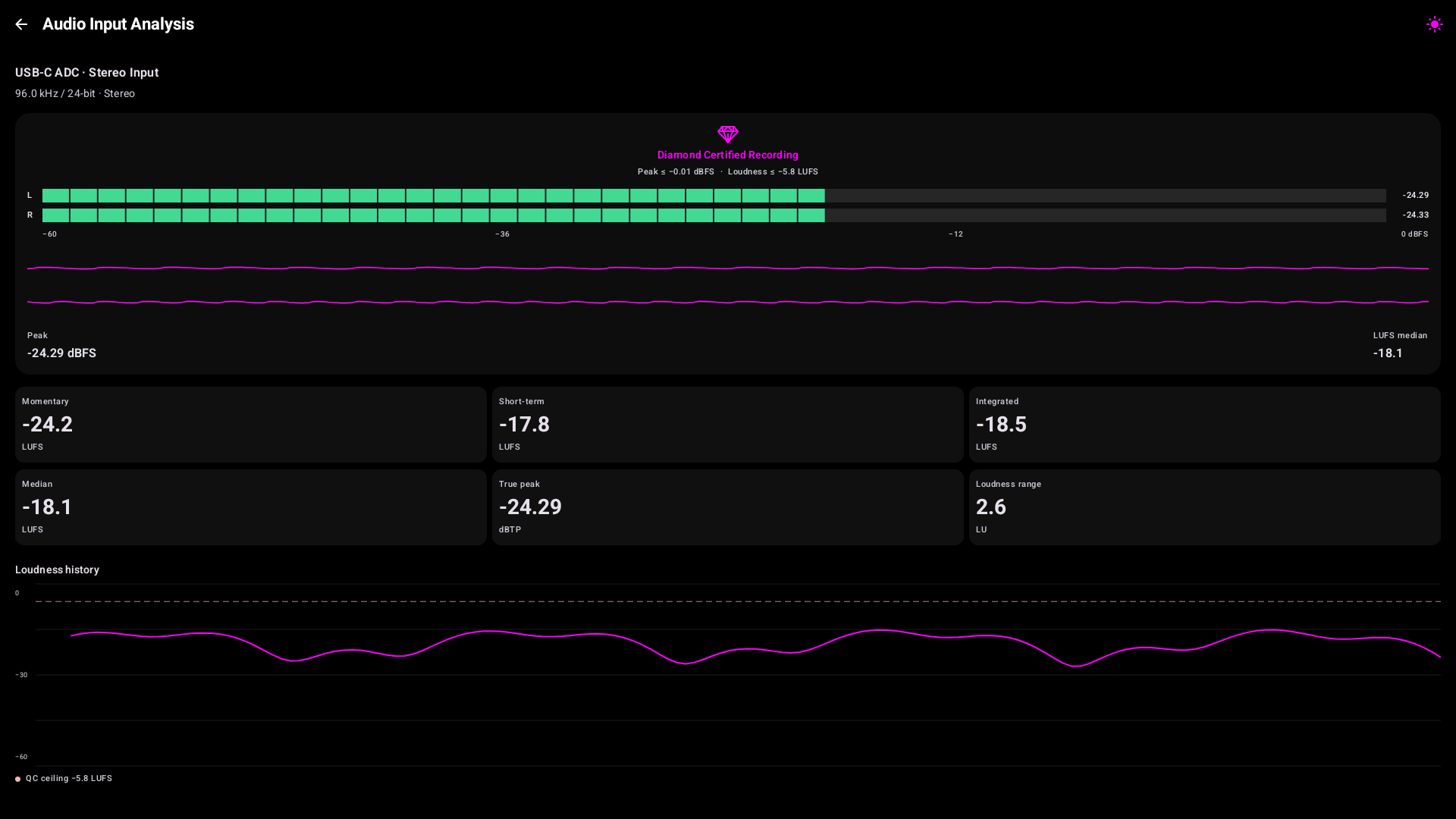

Expand the live audio analysis on an Android monitor. Read the signal, follow its history, and keep the recording state in view.

ANDROID MONITOR · FULL SCREEN
Diamond Player 1.4.0 · Audio Input AnalysisTap the screen to explore
01

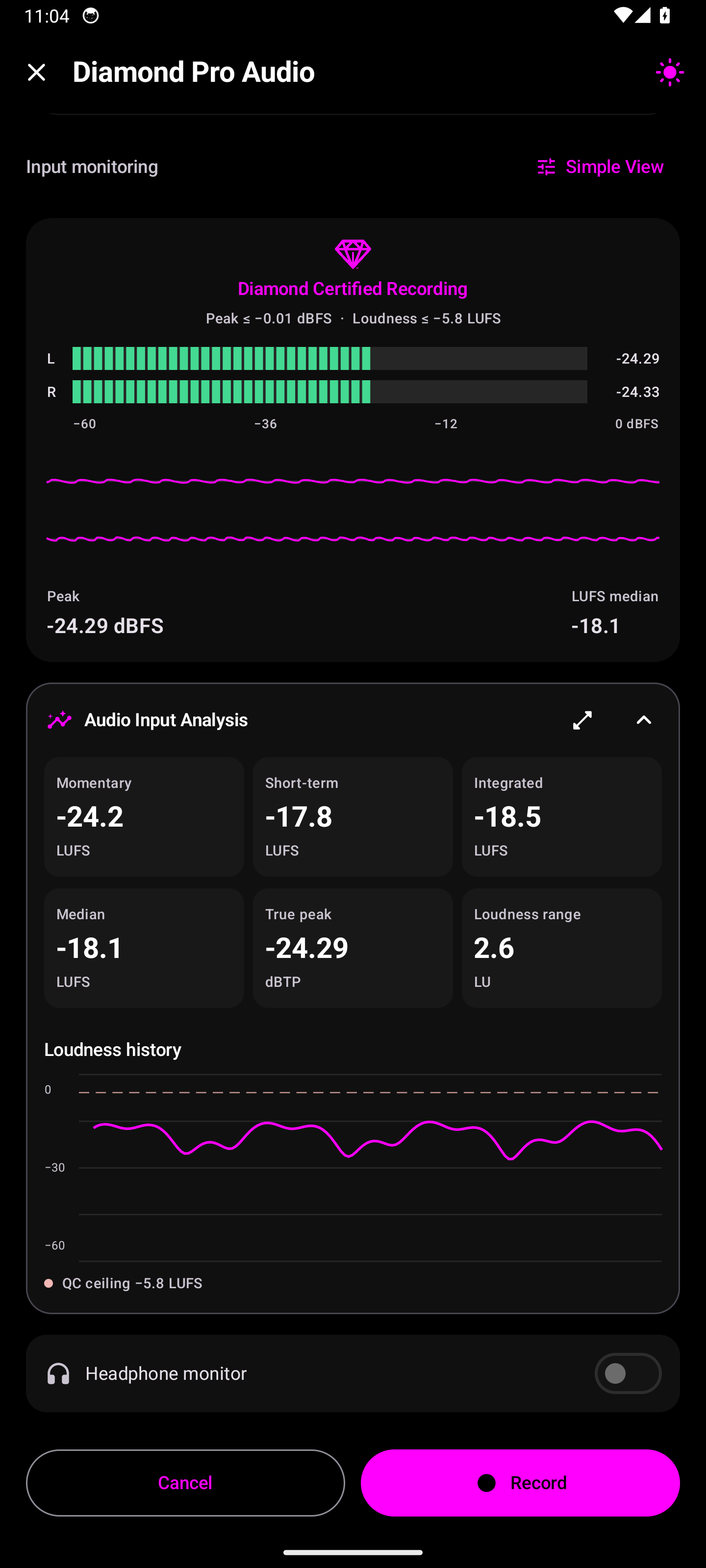

See the signal

Stereo waveforms, input levels, sample peak and true peak.

02

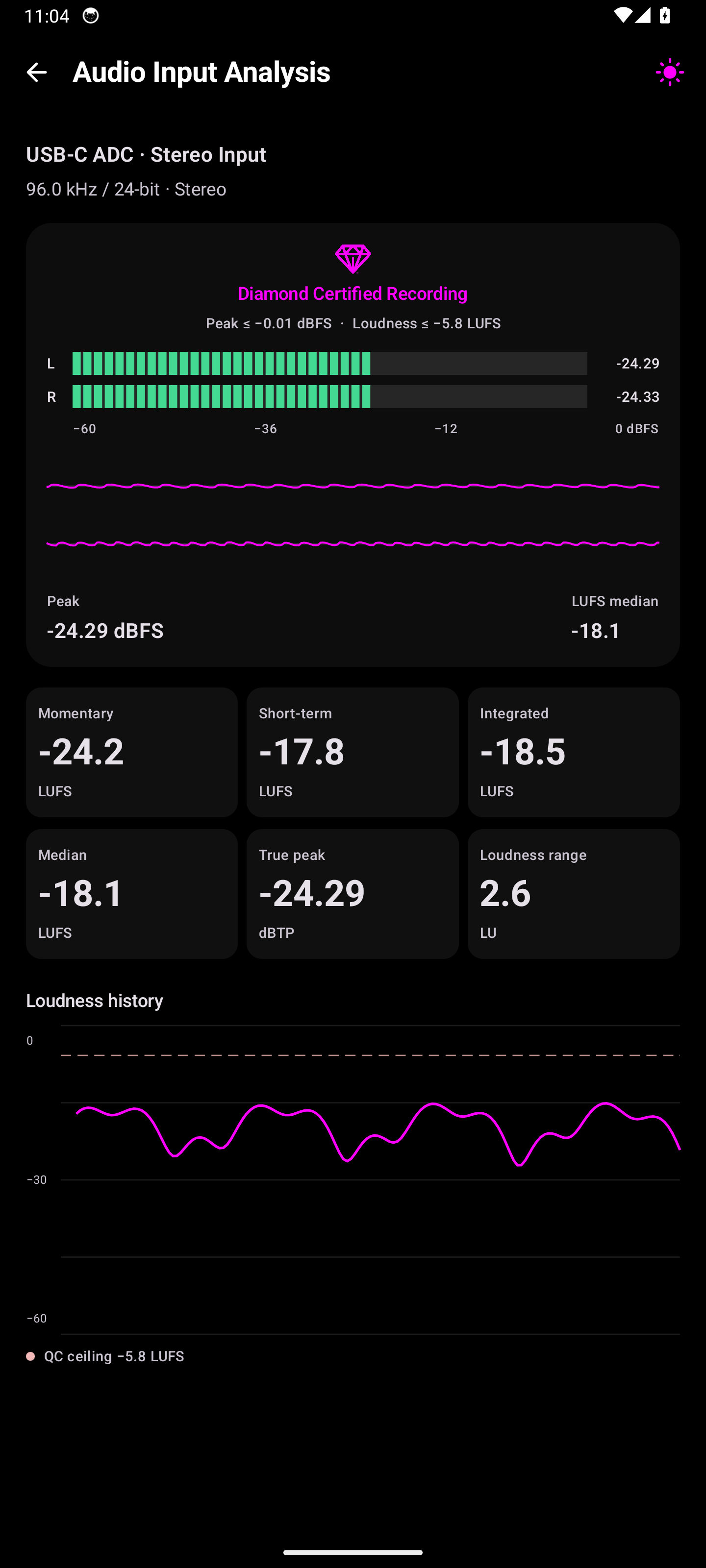

Follow the loudness

Momentary, short-term and integrated LUFS, median loudness and loudness range.

03

Keep the context

Loudness history, selected recording fidelity and the current quality-control state.

THE WORKFLOW / 02

A clear path
from input to take.

Simple input selection opens into a complete professional recording interface. The same controls follow you from a mobile display to a larger workspace.

01

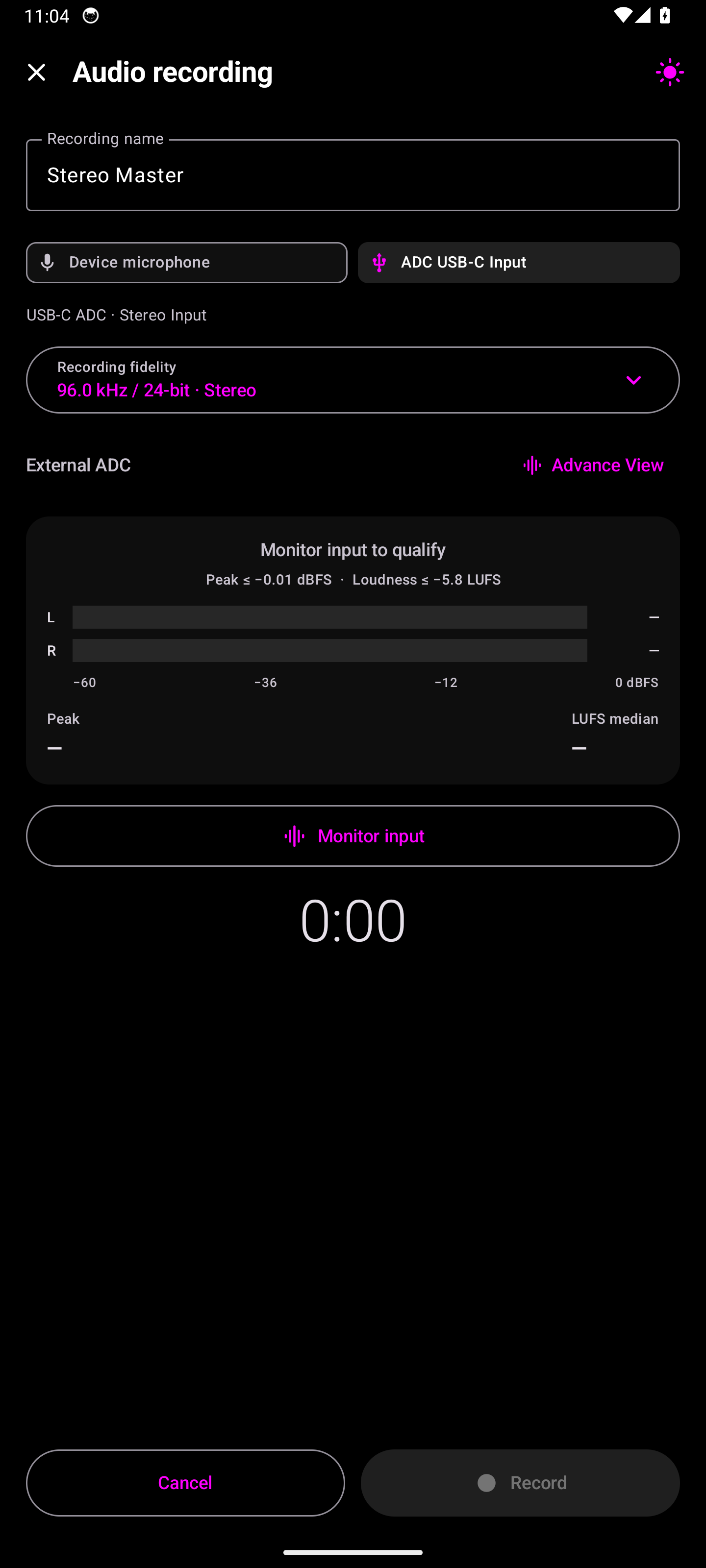

Choose the input

Select the connected ADC and an available recording format.
02

Monitor & qualify

Check the signal before recording. Four clean seconds qualify the input.
03

Open the analysis

Inspect loudness measurements, true peak and the signal’s history.
04

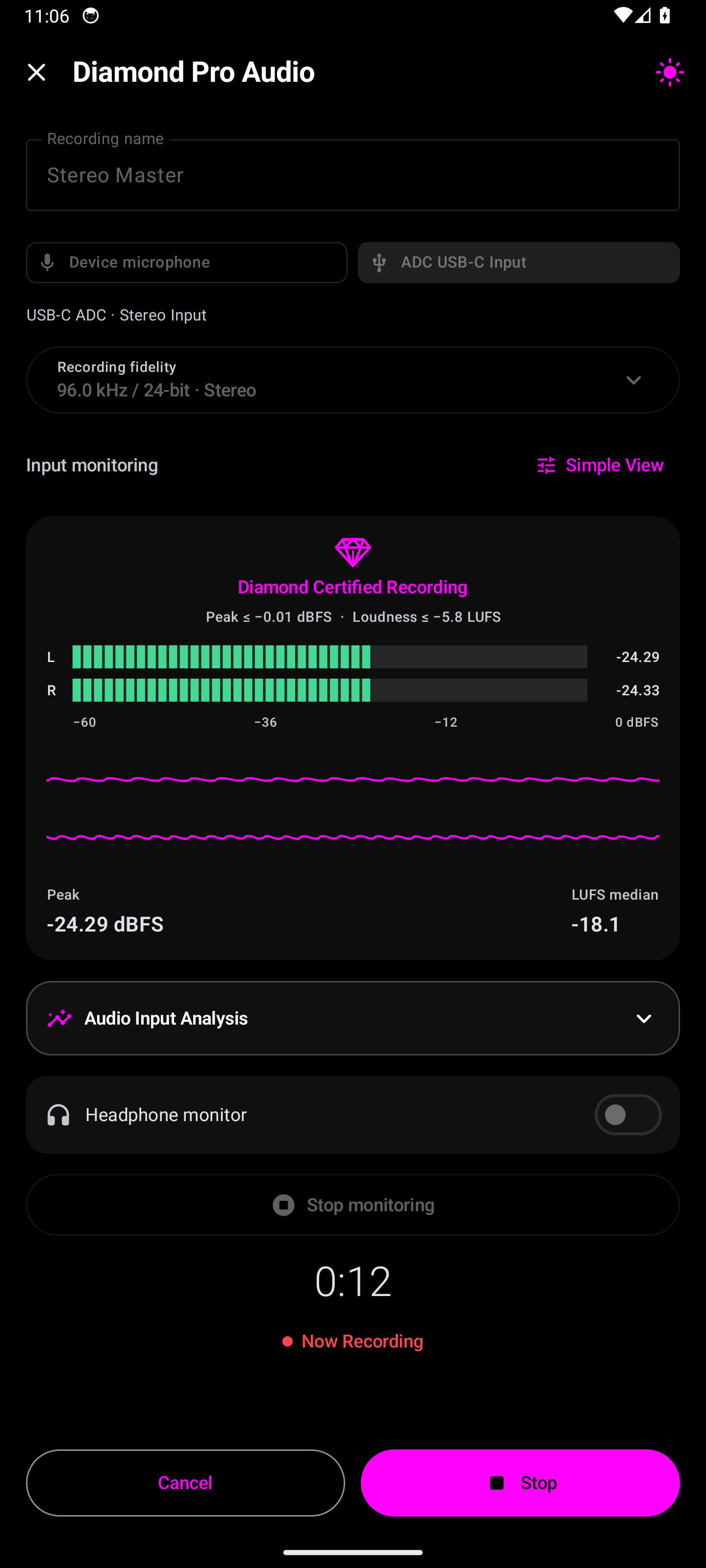

Record to Diamond

The recording listener continues checking the input throughout the take.
05

Protect the standard

A breached limit rejects the take. Monitoring stays available for correction.

One interface. Two appearances. The Dark / Light control updates every screen on this page.

THE RECORDING LISTENER / 03

Diamond Certified
Recording.

A recording standard enforced at the input. The Diamond designation appears only while the recording meets the acceptance criteria.

Diamond logoDiamond Certified
Recording

Qualify. Record. Verify.

SAMPLE PEAK≤ −0.01 dBFS
TRUE PEAK≤ −0.01 dBTP
AVAILABLE M / S / I LOUDNESS≤ −5.8 LUFS

Diamond Certified Recording is Dualscan’s own recording-acceptance designation.

  1. 01

    Listen before you record

    Monitor the ADC input and adjust levels at the source. Four consecutive seconds of qualifying input enable recording and reveal the Diamond logo with the “Diamond Certified Recording” label above the meters.

  2. 02

    Stay within every ceiling

    Sample peak and true peak must stay at or below −0.01 dB. Every available momentary, short-term and integrated loudness measurement must stay at or below −5.8 LUFS.

  3. 03

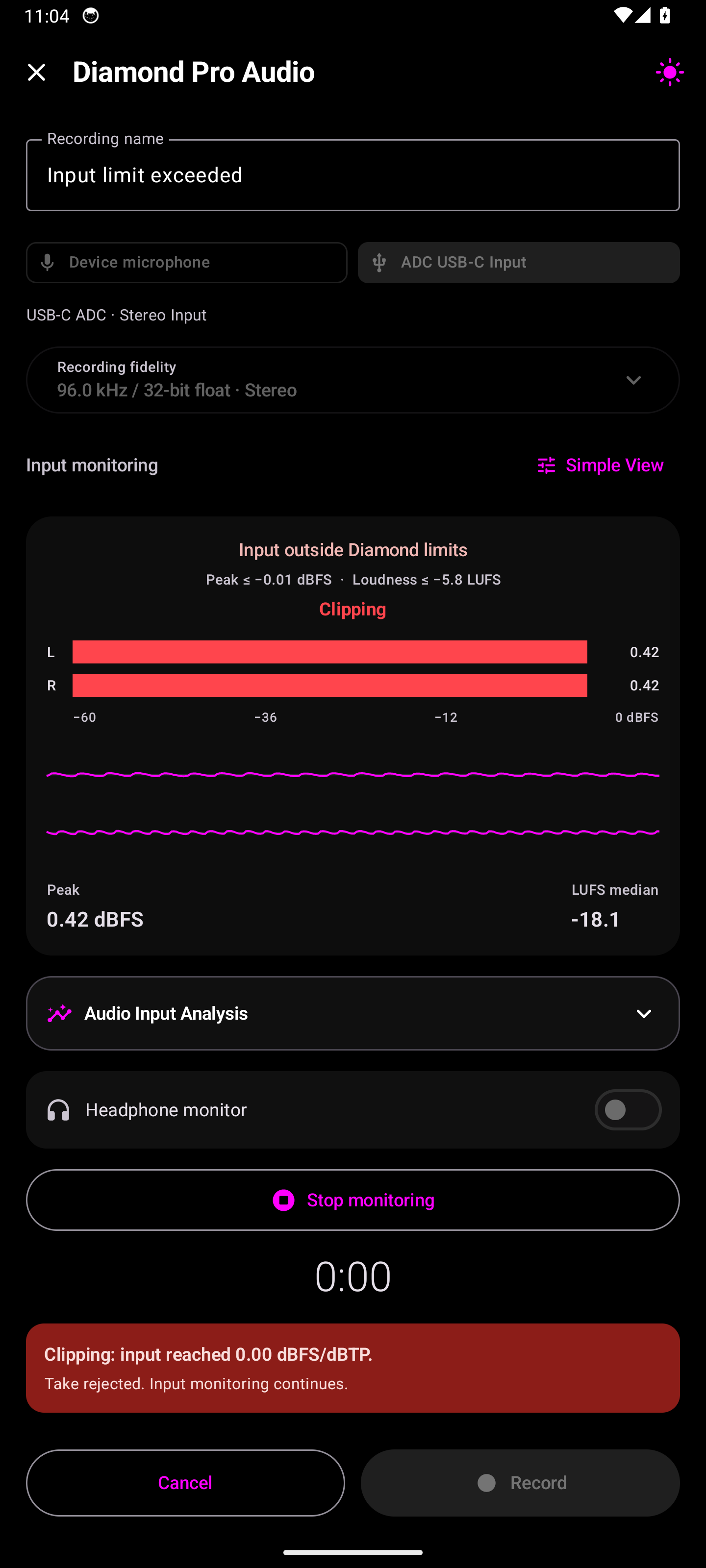

    Any breach stops the take

    Exceed a ceiling and recording stops, certification is withdrawn, and the entire take is rejected. No accepted .diamond file is published. Input monitoring continues.

  4. 04

    Correct, requalify, then record

    Set the source level and qualify the input again for a new take. A completed recording receives final peak and loudness checks before it enters the Diamond library.

PRECISION AT THE SOURCE / 04

Your ADC.
Your available formats.

Pro Audio presents the stereo formats exposed by the connected USB-C ADC and Android. Select the capture format the input supports, with no application-applied normalization or resampling.

PRO RECORDING24-bit PCM / 32-bit float

44.1 · 48 · 88.2 · 96 · 192 kHz

CD STANDARD16-bit PCM

44.1 kHz, when available

Exact format availability depends on the ADC and the Android audio path. Built-in microphone recording uses a fixed 16-bit / 48 kHz stereo setting.

CREATE. LEARN. EXCHANGE. / 05

A professional
creative community.

For engineers, artists, educators and students working with original recordings, digital media and the craft of sound.

Audio Engineering Society
COMMUNITY & EDUCATION

For the AES.org & Digital Arts
Pro & Education Community

Explore AES.org
BUILD THE COMPLETE COLLECTION

Record here.
Author what comes next.

Explore Diamond Discmaker and Diamond Menu Studio in the Dualscan Professional Suite, delivered on its own licensed MacBook Pro unit.

Professional Authoring Tools
Samsung Smart Switch icon

GITHUB COMMUNITY DISTRIBUTION

Start with the
Dualscan OS image.

Get our Samsung Smart Switch community distribution on GitHub. If you download the full repository ZIP, unzip it first. Open the extracted folder and copy only SmartSwitchBackup2 to the root of your USB-C drive, outside the GitHub distribution folder.

CorrectUSB-C / SmartSwitchBackup2 /
AvoidUSB-C / dualscan-os-main / SmartSwitchBackup2 /

The October 24 Smart Switch refresh, backup 1792858096703, includes the Bishiki DRAW update. Restored encrypted app versions have not been independently verified. The separate OEM folder provides Bishiki DRAW 0.4.10, VisaUSD 1.0.17, Diamond Player 1.4.3 and Share Lite 1.1.1 installers.

Keep the restore folder’s contents intact. Restore availability depends on the receiving Galaxy device and Smart Switch version.

View on GitHub Smart Switch restore guide
